DARO ECO Series

Description

UV water disinfection system.

For the disinfection of clean water to meet relevant water standards.

Technical Description

Single centred low-pressure lamp UV System.

UV lamp and quartz sleeve removable from either end of chamber.

Main Applications

• Private drinking water supplies

• Process water

• Water cooling supplies

• Legionella growth in warm water supplies

Standards

Water regulatory advisory service (WRAS) approved (1407340) Kiwa UK Approval (1905730)

Temperatures

Standard water temperature: 5-23°C

Temperature range: 0-60°C

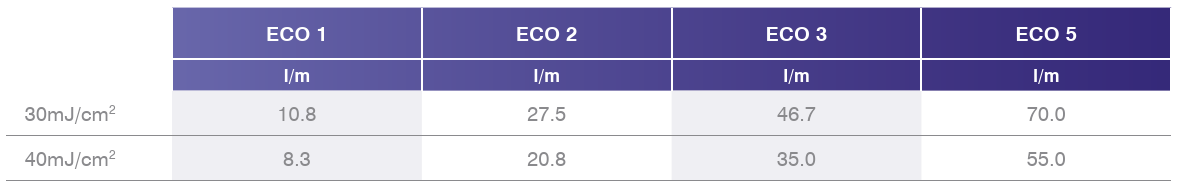

Flow Rates

Flows based on a UV transmission level of 98%.

All flows are calculated at end of lamp life time.

Please contact us for further information regarding flow ratesNew Paragraph

£594.00 per unit inc VAT

DARO Saphir Series

Description

UV water disinfection system

For the disinfection of clean water to meet relevant water standards

Technical Description

Single centred low-pressure lamp UV system

Single-ended UV lamp and quartz sleeve

Main Applications

• Private drinking water supplies

• Process water

• Water cooling supplies

• Legionella growth in warm water supplies

Standards

Water regulatory advisory service (WRAS) approved (1612300)

Temperatures

Recommended water temperature: 5-23°C

Possible temperature range: 0-60°C

Maximum WRAS approved temperature: 23°C

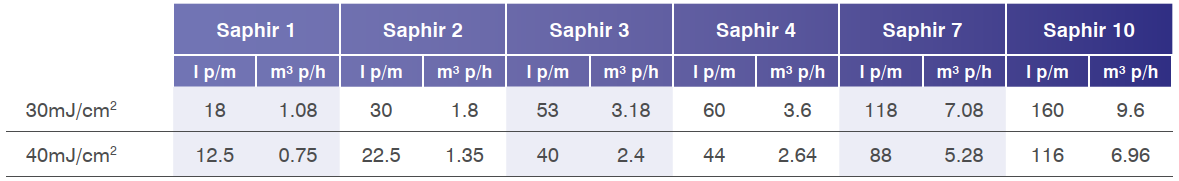

Flow Rates (Litres/minute)

Flows based on a UV transmission level of 98%.

All flows are calculated at end of lamp life time.

Please contact us for further information regarding flow rates.
