NHS Supply Chain

Catalogue No: MFB1133

Light Progress

UV-PENTALIGHT 5/120 RCD-VTM

Removes up to 99.9999% of Viruses and Bacteria

Dimensions  H1286 x W409 x D393mm

Technological excellence

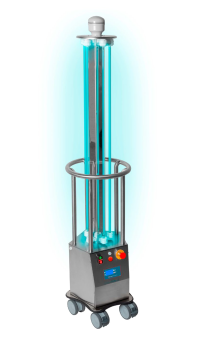

This system is a five lamps germicidal device, placed on a stand, with five wheels for easy mobility. It works on direct radiation at 360 degrees and disinfects irradiated air and surfaces.

The UV-C lamps, with emission peak at 253.7 nm. (nanometres), have a strong germicidal power against all micro-organisms (moulds, bacteria and viruses).

Each UV-PENTALIGHT series can be installed in any type of environment to achieve a deep disinfection of air and surfaces, even those difficult to be reached by traditional systems.

When turned on, it gets a strong reduction of microbes in the air and on surfaces. For example, in 4 minutes at a distance of 3.5 meters, it achieves a 99.99% reduction of bacteria such as: Escherichia c., Salmonella t., Pseudomonas a., Staphylococco a., Klebsiella pn, Clostridium, Legionella, Vibrio, Bacillus s., Streptococco, ecc.

Increasing up to 10 minutes will reach 99.9999%.

UV-PENTALIGHT includes:

Designed to provide high quality UV contamination control in kind of environment, PENTALIGHT main features are:

• 5 lamps, 360° irradiation
• Available in 2 size/lamp model (60 - 120 W)
• 18,000 hrs lamp life
• Motion sensor on each side to switch OFF lamps automatically in case of personnel entering the room
• Remote control to switch ON / OFF the system and check treatment status
• High class wheels, (hospital instruments model)
• Visual indicators on top (purple / red / green) to indicate treatment starting / interrupted accidentally / finished
• Treatment of 99,99% should be accomplished within 4 minutes, in 10’ you get 99.9999%.
• (University tests following FDA standards)


NUVTON®

Removes up to 99.99% of Viruses, Bacteria and Mould Spores

3 Sizes available

Technological excellence

Disinfection with NUVTON® UV-C benefits public health, since it is non toxic, extremely effective and safe alternative to wet chemical disinfection. UVC light can be used to disinfect an entire facility without any harmful chemicals or toxins. No liquids are sprayed, and no residue or odour are left behind.

Surface disinfection is one of the interventions that is frequently recommended to reduce the risk of virus transmission. There are specific environmental disinfection protocols for public places, particularly environmental surface cleaning of routinely touched surfaces and objects (e.g., door knobs, desks, keyboards, tables, etc.) to reduce the risk of virus transmission. Contact transmission (i.e., hand transfer of virus from contaminated objects to the eyes, nose, or mouth) is a recognized route of virus spread.

Applications include.

• Ambulances
• Fire Engines
• Nursing Homes
• Schools
• Police
• Nursery Schools


Light Progress

UV-TUNNEL

Conveyor irradiator UV-TUNNEL

significantly reduces the risk of microbiological contamination of the surface, packages on or around conveyor

production lines.

The UV-TUNNEL provides:

• microbiological disinfection

• virological disinfection

• removes the need for chemical disinfection

• disinfects all visible surfaces of the tray

• there is no “shadow effect” in the UV-TUNNEL

• no escaping UV-light outside the UV-TUNNEL

Features:

• UV-C amalgam lamp (253.7 nm)

• quartz sleeve with a reflector and a splitter protection on the sleeve

• water-tight and dust-tight (IP 68)

• powered by electronic ballast

• electrical cabinet for ballasts

• mains: 230 V, 50/60 Hz

• CE-mark (LVD - EMC - MD - RoHS)

• wheel diameter 50 mm

• wheel distance (axis – axis) 67 mm

• Velocity 0.1 m/s
